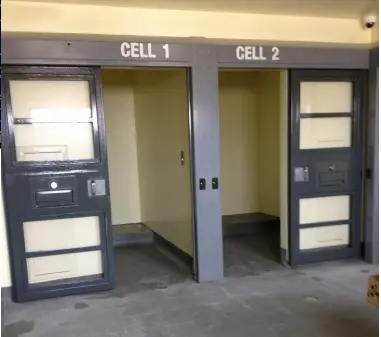

S4110L - Electric Locking System

Product SKU: S4110L

0.00

RFQ ONLY

Quantity

Product Details

Application

For use where remote electric unlocking of groups of sliding doors is required, but door movement is by hand at the door. This product also provides the option of emergency mechanical unlocking from a control cabinet at the head of the door line. Doors are locked at top and bottom in both the open and closed positions by means of a concealed vertical lock bar at the rear jamb of each door. The vertical lock bar is deadlocked at a third locking point inside the horizontal cover box above the door. Standard clear door opening widths available are 2’6” to 4’.0” (762 to 1219mm).

Function

Electric - Individual switches located on a remote control panel operate an electric motor housed in the horizontal cover box over each door, raising the vertical lock bar and unlocking the door. Upon unlocking, the door springs open a few inches. All door movement is by hand at the door, which automatically snap/deadlocks when moved to the fully closed or fully open position. Individual lamp indicators on the control panel show locked/unlocked condition. A single switch can provide group unlocking.
Mechanical - In the absence of electrical power, doors may be individually unlocked with a manual release tool. Door movement is by hand and door will relock in either fully open or closed position.

Standard Features

• Pop Open - Movement by Hand
• Obsero control module
• Bottom door guide
• Door hanger
• Manual release in cover box
• Sloped-front cover box
• Hinged cover panel for maintenance access
• Vertical lock bar assembly
• Lock Open Position
• Integrated Bluetooth / Internal Antenna
• Indications - Door & lock bar position indications
• Prime paint finish

Optional Features:

• Manual release in cover box with 1010A paralentric lock
• Pilaster release (P-1)
• Electric key switch, paracentric or mogul (P-1 or PKM-1)
• Electric half cycle (D)
• Emergency gang release - manual release cabinet (MRC)
• No lock open (NLO)
• Flat top cover boxes (FT)
• Empty in fill boxes
• Hot dip galvanized finish (G)
• Remote panel lock system (RP)
