S3150LX.b - Electric Locking System

Product SKU: S3150LX.b

0.00

RFQ ONLY

Quantity

Product Details

Application

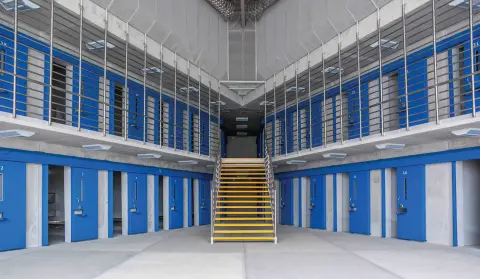

The S3150LX.b system offers complete selective electric operation of sliding doors in a line or group from a remote control station. Doors are operated by electric motors through a rack and pinion drive mechanism over each door.
This product also provides the option of emergency mechanical unlocking from a control cabinet at the head of the door line.
Doors are locked at top and bottom in both the open and closed positions by means of a concealed vertical lock bar at the rear jamb of each door. The vertical lock bar is deadlocked at a third locking point inside the horizontal cover box above the door. Standard clear door opening widths are from 2’6” to 4’.0” (762 to 1219mm).

Function

Electric - A remote switch activates a motor which raises a vertical lock bar and propels the door open or closed. Individual lamp indicators on the control panel show locked/unlocked condition. A single switch can provide group unlocking.
Mechanical - In the absence of electrical power doors may be individually unlocked with a manual release tool. Door movement is by hand and door will relock in either fully open or closed position.

Standard Features:

• Full remote control unlocking & movement of door
• Obsero control module
• Bottom door guide
• Door hanger
• Manual release in cover box
• Sloped-front cover box
• Hinged cover panel for maintenance access
• Vertical lock bar assembly
• Lock Open Position
• Integrated Bluetooth / Internal Antenna
• Indications - Door & lock bar position indications
• Prime paint finish

Optional Features:

• Manual release in cover box with 1010A paracentric lock
• Pilaster release (P-1)
• Electric key switch, paracentric or mogul (P-1 or PKM-1)
• Emergency gang release - manual release cabinet (MRC)
• No lock open (NLO)
• Flat top cover boxes (FT)
• Empty infill boxes
• Hot dip Galvanized finish (G)
• Remote panel lock system (RP)
• 3 hour fire rated (UL)
