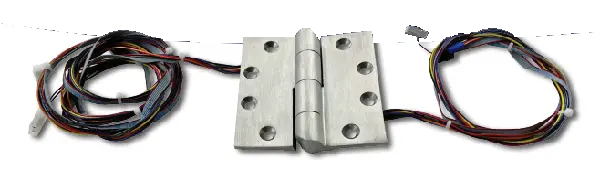

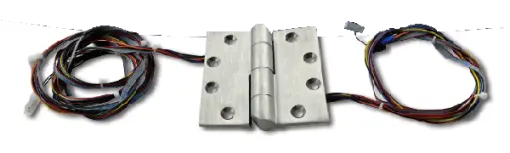

S204E - Electric Power Transfer Hing

Product Details

Application

Designed to supply power from door frames to electric locks on hollow metal doors, the S204E Power Transfer Hinge contains eight UL 1061 PVC Hook-Up Wires - 22AWG Stranded & one UL 2651 PVC Round Conductor Flat Cable - 28AWG 6-Conductor. Available in full mortise configuration only to be used with 204FM institutional hinges. This is not a load-bearing hinge.

Technical Data

• Standard Finish: US26D
• Size: 4-1/2: x 4-1/2" x 3/16" (114 x 114 x 4.75mm)
• Weight: 1.6 lbs
• Hinge Leaves: Cast Stainless Steel
• Hinge Pin: 5/8: diameter (16mm) O.D. tubing steel
• Electrical: 1 amp capacity, 40 volts maximum
