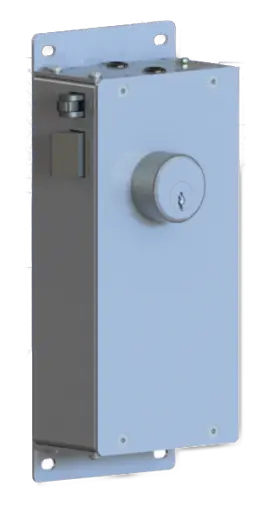

S10120AM - Motor Driven Smart Lock

Product SKU: S10120AM

0.00

RFQ ONLY

Quantity

Product Details

Application

Medium and maximum security swinging doors that are to be unlocked from a remote location. Jamb mounted. Door position indicator switch, door closer and heavy duty door pull are recommended.

Function

Electronic - Remote signal activates a motor which retracts the latchbolt. Latchbolt remains retracted until door is opened approximately 2” (50mm), then it releases, automatically latches and deadlocks when the door is closed.
Mechanical - Latchbolt is retracted with a mogul key at the door, and remains retracted until door is opened approximately 2” (50mm), then it releases and automatically latches and deadlocks when the door is closed. Automatic deadlatch feature is suspended when paracentric key is rotated to mechanical key hold-back position. Normal function is resumed when key is returned to deadlock position. For positive tamper proof resistant signaling for a closed & dead locked door a 200MRS TB door position switch is required.

Standard Features

• Multi-Function Programmable Lock
• Fail Secure
• Mechanical Latch Back
• Power over Ethernet (PoE+)
• Patented Bolt Position Indication (BPISensor (U.S. Pat. No. 9,754,433)
• Motor Temperature Sensor
• Dead Lock Indication Switch
• Lock Operation Historian
• Integrated Bluetooth / Internal Antenna
• Wire harness / connector for integrated 200MRS TB DPS
